Knee & Hip Joints

Prosthesis

PKN0401

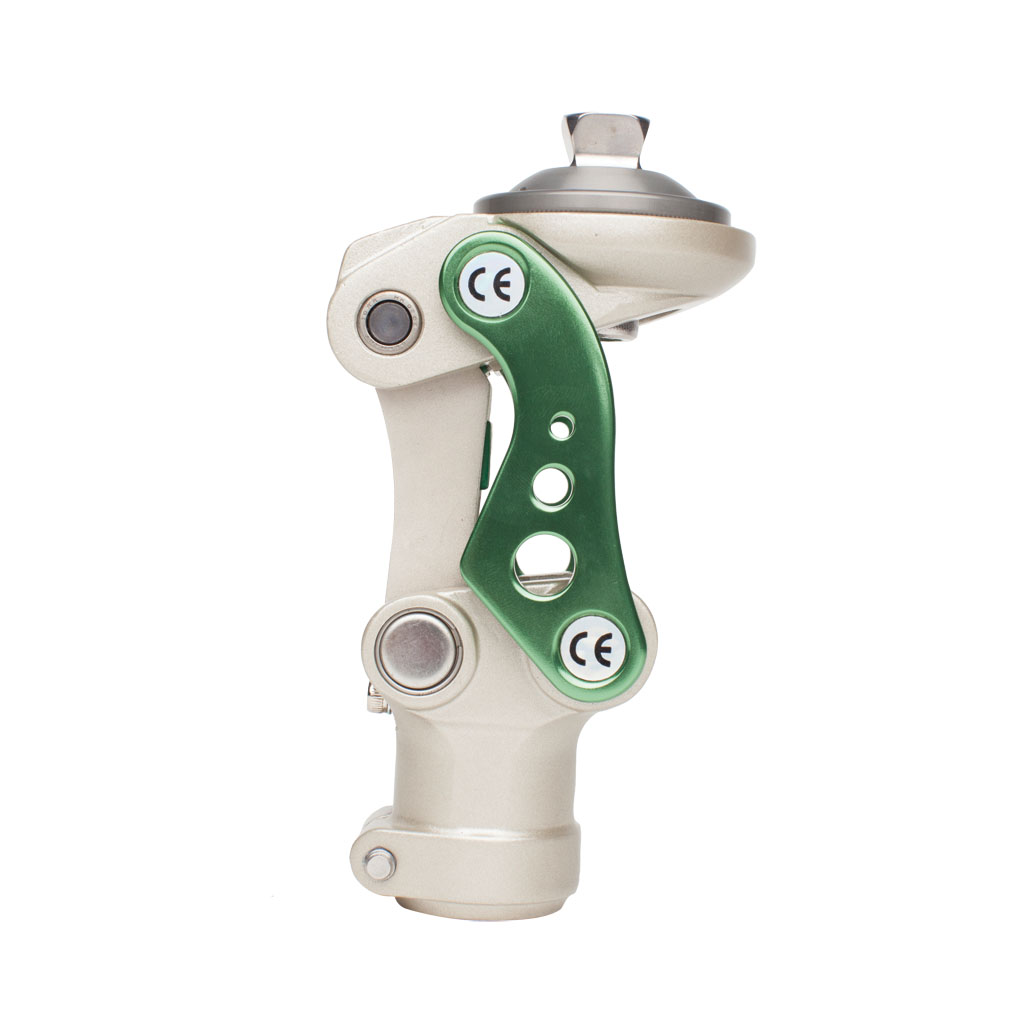

4-BAR POLYCENTRIC KNEE JOINT

  • Polycentric knee
  • 4-bar linkage is made of aircraft alloy (AA7075)
  • Light weight
  • Proximal attachment has A-P slide and rotation adjustment
  • Optional adapters: Pyramid (AK) and Lotus (KD)
  • w/o manual lock system


Top Adaptor Lotus Adaptor Pyramid Adaptor
Build Height 160mm 160mm
Knee Center to Dome 24.5mm 24.5mm
Amputation Level Transfemoral amputation Transfemoral amputation
Activity Level K2 K2
Knee Weight 651g 672g
Max. Weight Bearing 125 Kg/275 lbs 125 Kg/275 lbs
Max. Flexion Angle 135° 135°
Bottom Adaptor Tube clamp Tube clamp
Warranty 2 years 2 years
